Item Category:
Hatches - Extruded Trapezoid
Name:
Title:
Description:

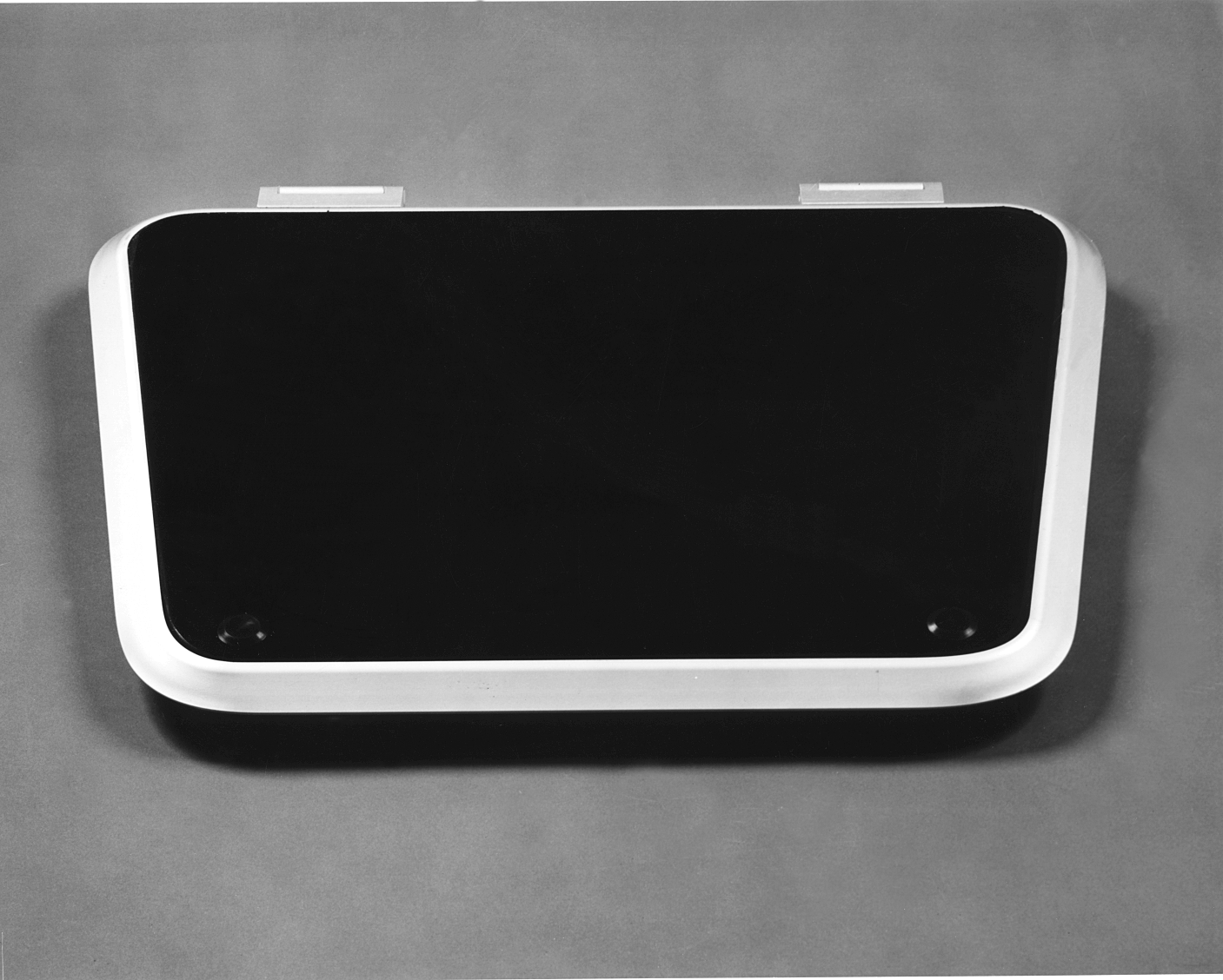

Trapezoidal 1000 and 2000 Series Hatches
Features:
Anodized heavy-duty aluminum frames.
Vent position
Heavy-duty acrylic top.
Quick acting tie down dogs.
1094-10
| Part Number | Hatch Opening
Size | Hole Cut Out | O.D. of Deck Flange | O.D. of Lid | Weight | Price |
|
|---|
| N1090-10A | 20 7/8" X 15 7/16" X 16 1/4"
(530mm X 392mm X 413mm) | 22" X 16 9/16" X 17 3/8"
(559mm X 421mm X 441mm) | 23 5/8" X 18 3/16" X 19"
(600mm X 462mm X 483mm) | 24 3/8" X 18 15/16" X 20 1/8"
(619mm X 481mm X 511mm) | 14 lbs | $752.00 | |
| N2093-10A | 21 5/8" X 15 11/16" X 17 7/8"
(549mm X 398mm X 454mm) | 22 3/4" X 16 13/16" X 19"
(578mm X 427mm X 483mm) | 24 3/8" X 18 7/16" X 20 5/8"
(619mm X 468mm X 524mm) | 24 11/16" X 18 3/4" X 20 15/16"
(627mm X 476mm X 532mm) | 17 lbs | $773.00 | |
| N1094-10AX | 24 1/4" X 18 1/8" X 19 3/8"
(616mm X 460mm X 492mm) | 25 3/8" X 19 1/4" X 20 1/2"
(645mm X 489mm X 520mm) | 27" X 20 7/8" X 22 1/8"
(686mm X 530mm X 562mm) | 27 3/4" X 21 5/8" X 23 1/4"
(705mm X 549mm X 591mm) | 15 lbs | $814.00 | |
| N2090-10A | 20 7/8" X 15 7/16" X 16 1/4"
(530mm X 392mm X 413mm) | 22" X 16 9/16" X 17 3/8"
(559mm X 421mm X 441mm) | 23 5/8" X 18 3/16" X 19"
(600mm X 462mm X 483mm) | 23 15/16" X 18 1/2" X 19 5/16"
(608mm X 470mm X 491mm) | 14 lbs | $701.00 | |
| N2092-10A | 20" X 18 7/16" X 17 7/16"
(508mm X 468mm X 443mm) | 21 1/8" X 19 9/16" X 18 9/16"
(537mm X 497mm X 471mm) | 22 3/4" X 21 3/16" X 20 3/16"
(578mm X 538mm X 513mm) | 23 1/16" X 21 1/2" X 20 1/2"
(586mm X 546mm X 521mm) | 16 lbs | $752.00 | |
