Item Category:
Hatches - Cast 190 Series
Name:
Title:
Description:

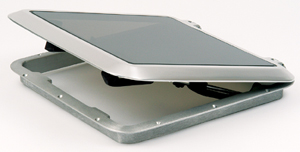

Cast Hatches
190 Series
Features:
- Polished & anodized (except 192)
- Cast Aluminum Almag-35
- Traditional low profile
- Acrylic lens
- Quick action dogs
- Overall height is approximately 1"
- CE approval available. Please specify when ordering.
____
___
Optional trim ring and screen available for above hatches (except 192).
192 is hinged on 24" side and is available in black, white, or silver powder coat only.
Hatch Installation Instructions
| Part No. | Hole Cut Out | O.D. of Deck Flange | O.D. of Lid | Spigot Length
| Weight Lbs. | Cut Out Radius | Price |
|
|---|
| 190 | 22 3/16" x 22 3/16" (564 mm x 564 mm) | 24 5/8" x 24 5/8" (625 mm x 625 mm) | 25 7/8" x 25 7/8" (657 mm x 657 mm) | 1 1/2" | 27 | 2 3/4" | $1,990.00 | |
| 191 | 13 1/8" x 13 1/8" (333 mm x 333 mm) | 15" x 15" (381 mm x 381 mm) | 15 3/8" x 15 3/8" (390 mm x 390 mm) | 1 1/4" | 14 | 1 1/8" | $918.00 | |
| 188 | 10" x 10" (254 mm x 254 mm) | 11 1/2" x 11 3/4" (280 mm x 293 mm) | 11 15/16" x 12" (303 mm x 305 mm) | 1 1/4" | 10 | 3/4" | $675.00 | |
| 193 | 20" x 20" (510 mm x 510 mm) | 22 1/2" x 22 1/2" (572 mm x 572 mm) | 23" x 23" (584 mm x 584 mm) | 1 1/2" | 25 | 2 3/4" | $1,332.00 | |
| 192 | 24" x 28" (610 mm x 710 mm) | 27" x 30 3/4" (685 mm x 780 mm) | 28" x 32" (711 mm x 813 mm) | 1 1/2" | 30 | 2 3/4" | $2,632.00 | |
| 189 | 16 1/2" x 16 1/2" (420 mm x 420 mm) | 18 1/8" x 18 3/8" (453 mm x 459 mm) | 18 7/16" x 18 1/2" (468 mm x 470 mm) | 1 1/4" | 18 | 11/8" | $1,061.00 | |
